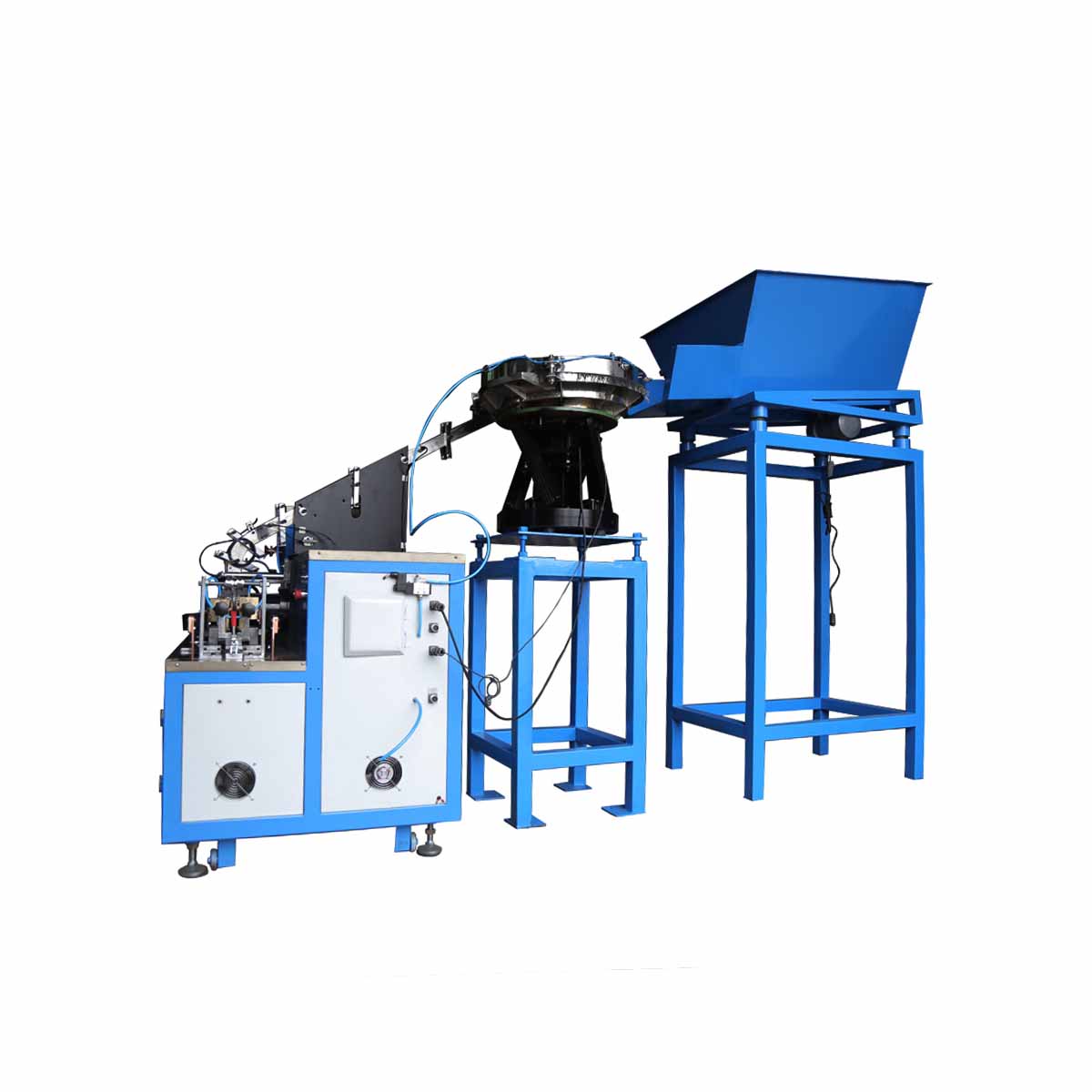

The principle of this machine is to put messy nails into the vibrating plate. Then the vibrating plate arranges the nails neatly, and reaches the welding part through the feeding port, and is automatically oiled, dried, counted and rolled into rolls.
Overview
Product Description

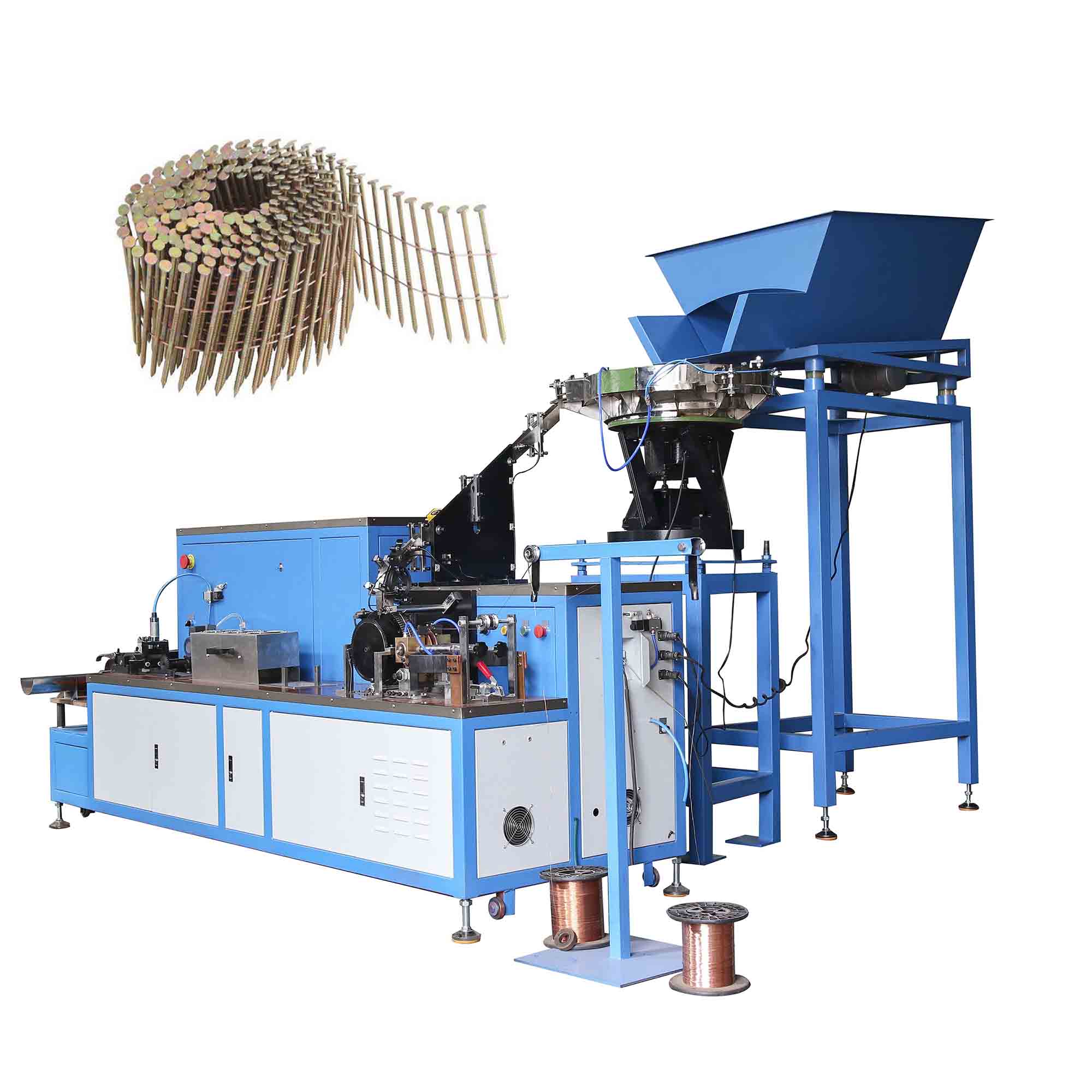

This coil nail making machine is a special kind of automatic welding equipment. The nails will be welded by two copper coated wires at a certain angle, 15° to 16°, then the welded nails are coiled to a fixed length as per the counter to cut off, forming a coil shape with flat top or cone top. Available Raw Material for nail making machine: Normal wire, new metal wire, waste rebar, scrap steel bar, hard-drawn wire, waste electrode, and other kind of waste steel.
Production Capacity:2000pcs/min Warranty of core components:1 Year
Power (kW):10 Weight (KG):1600 KG
Nail Length:25-120MM Diameter of Nail:2.1-4.1mm
Process of nail making: Wire-Rod → Wires-Drawing → Nail-Making → Polishing →Rolling→Coiling→ Packing → Delivery
|

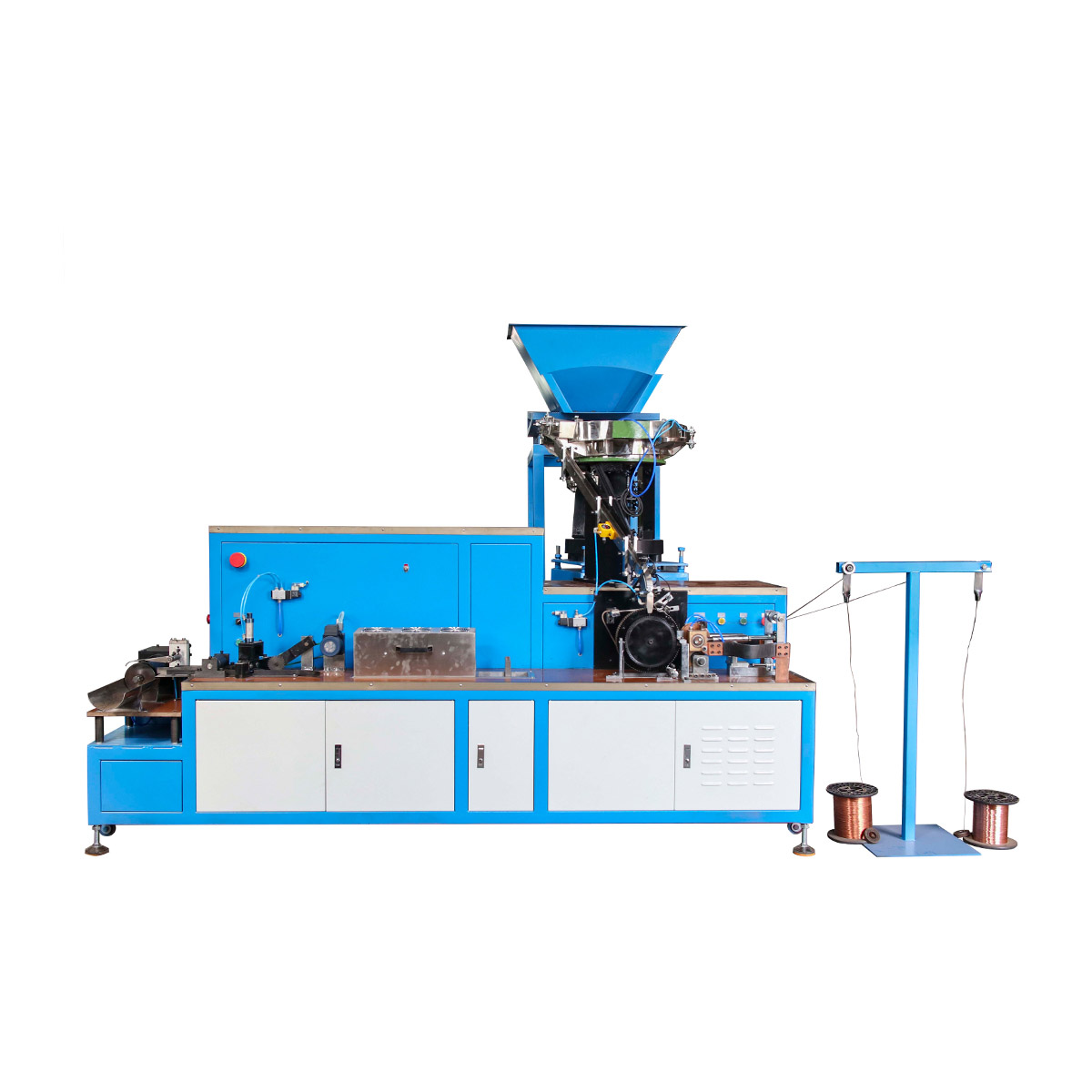

Coil Nail Collating Machine
|
|
|
Range of Nail Dia
|
1.6mm-4.1mm |
| Range of Nail Length | 25mm-130mm |
| Speed | 2500 pcs/min. |
| Rated Power | 8kw |
| Power of Nail Feeding System | 0.75kw |
| Power of Welding System | 20kw, 1000-2000A |
| Power Supply | 3 phases AC 380V 50-60HZ |
| Packing | packed in 2 wooden cases |
|
Packing Size
|
3000X1500X1800mm |
| Weight | 1600kg |
Detail images
Main Features：
1) 10years production experience with good reputation;
2) We specialize in design machines according to customers' requirements. 100 sets of machine can be supplied per month;
3) You are welcomed to visit our factory, the machines can be operated on site, and you will master the usage of machines nearby. and we also provided best after-sales service.
Finished products
customer visit
Certifications
Packaging and shipping
1. Shipping port: Shanghai
2. Validity: within 30 days
3. Payment terms: 30% T/T down payment in advance and 70% before shipment
4. Warranty: 1 year from date of installation
5. Installation/Operation/Service/Maintenance Manual: Provided In English
6. In wooden pallet, In plastic film, the spare parts and cabinet packed by wooden box.
Our service
1. All required documents (including Installation/Operation/Service/Maintenance Manual) will be provided in English.
2. Engineer will give free training and guide to labors at customer's site if requested.
3. Commissioning charge is $150/day/engineer,and customer will be asked to provide room, meals, round-trip transportation for engineer.
4. We will offer life-long technical guide and maintenance.
5. Warranty:1year from date of installation.
