The steel nail making machine is economical and practical. It is easily to operate and use. It has the features of low power, energy saving, stable and reliable. The quality reaches the standard, the device has the characteristics of small size,flexible and convenient movement, low noise, low power consumption and easy installation.
|
Model
|
Z94-5.5C
|
Z94-4C
|
Z94-3C
|
Z94-2C
|
Z94-1C
|
|
Max. dia. of nail(MM)
|
5.5
|
4.5
|
3.5
|
2.8
|
1.6
|
|
Min. dia. of nail(MM)
|
3.8
|
2.8
|
1.8
|
1.2
|
0.9
|
|
Max. Length of nail(MM)
|
150
|
100
|
75
|
50
|
25
|
|
Min. length of nail(MM)
|
80
|
50
|
30
|
16
|
9
|
|
Motor power(KW)
|
5.5
|
4
|
3
|
2.2
|
1.5
|
|
Nail making speed
|
220pcs/min
|
260pcs/min
|
320pcs/min
|
380pcs/min
|
450pcs/min
|
|
L*W*H(M)
|
2.5*1.6*1.5
|
2.2*1.6*1.65*
|
2.0*1.4*1.4
|
1.7*1.3*1.4
|
1.5*1.3*1.2
|
|
Weight(TONS)
|
2.3
|
2
|
1.8
|
1.45
|
1.2
|

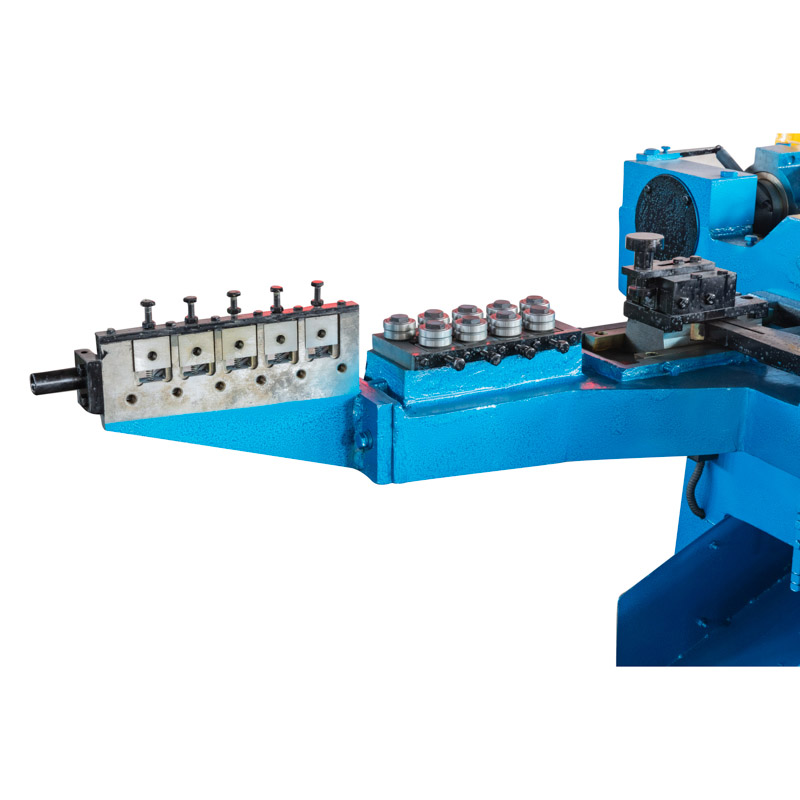

Detail Images

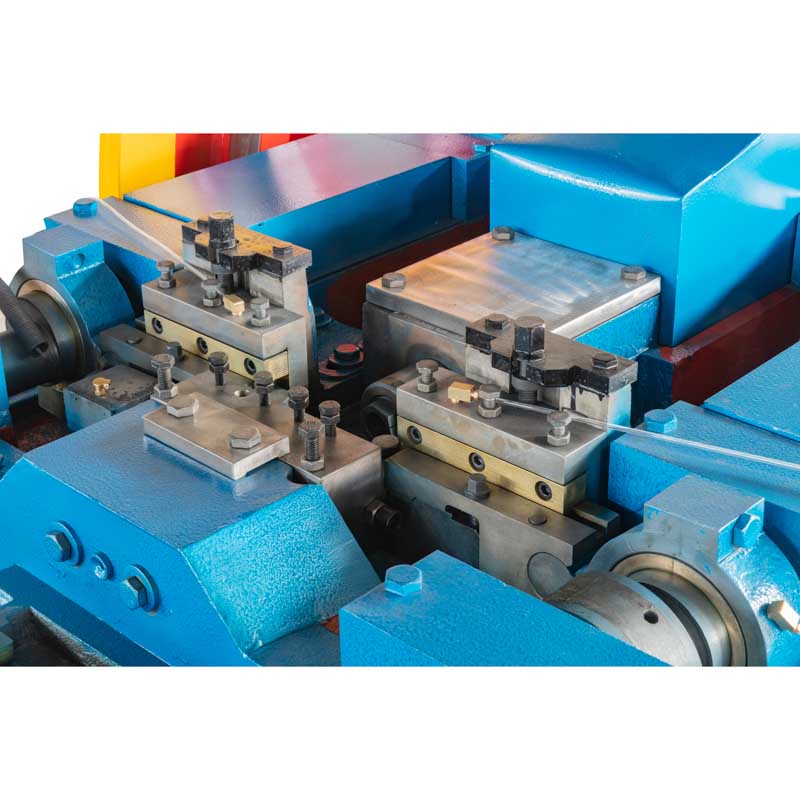

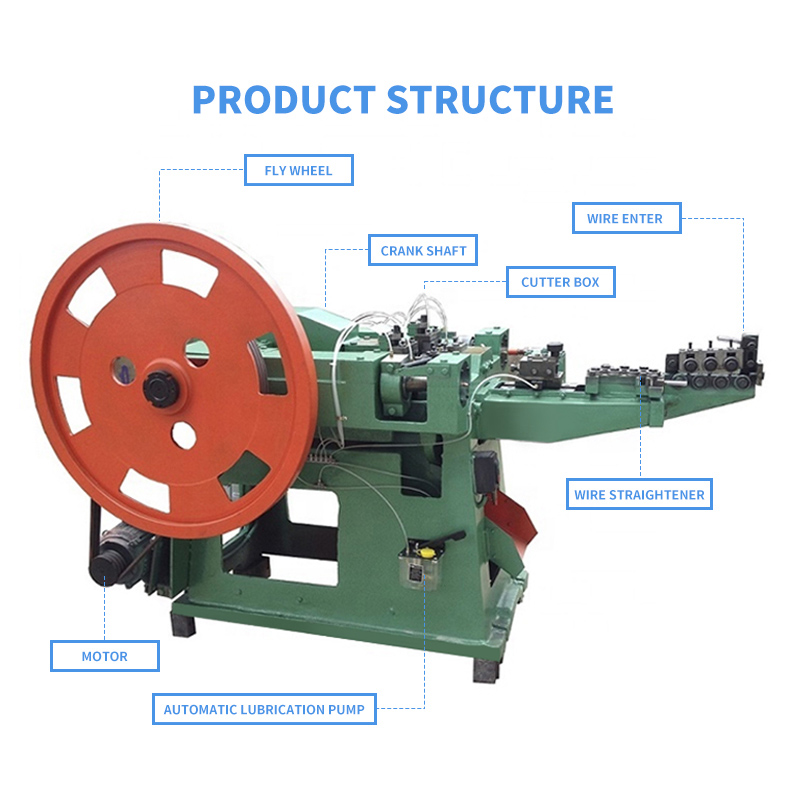

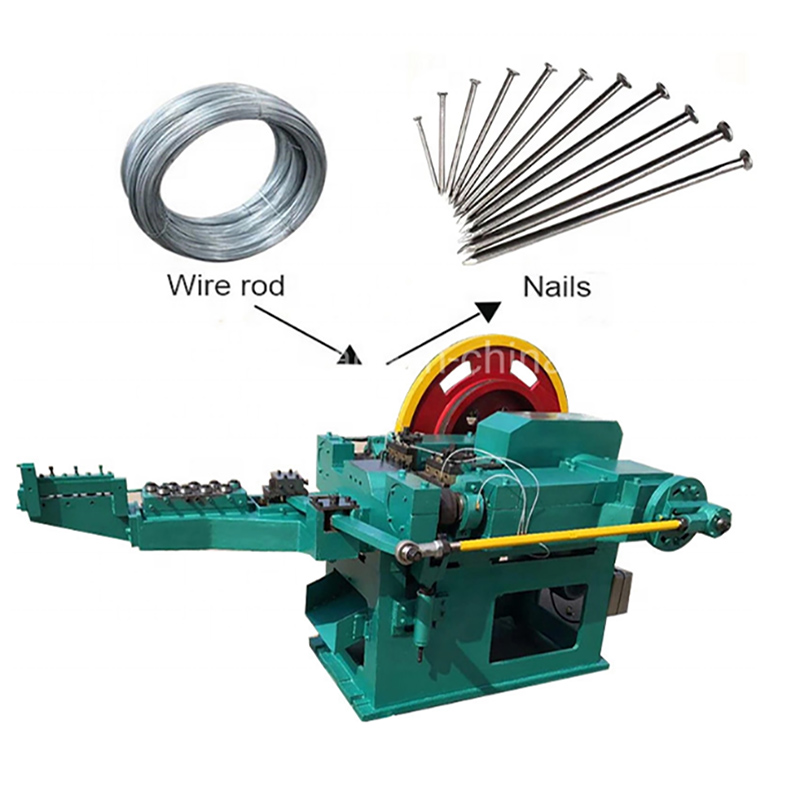

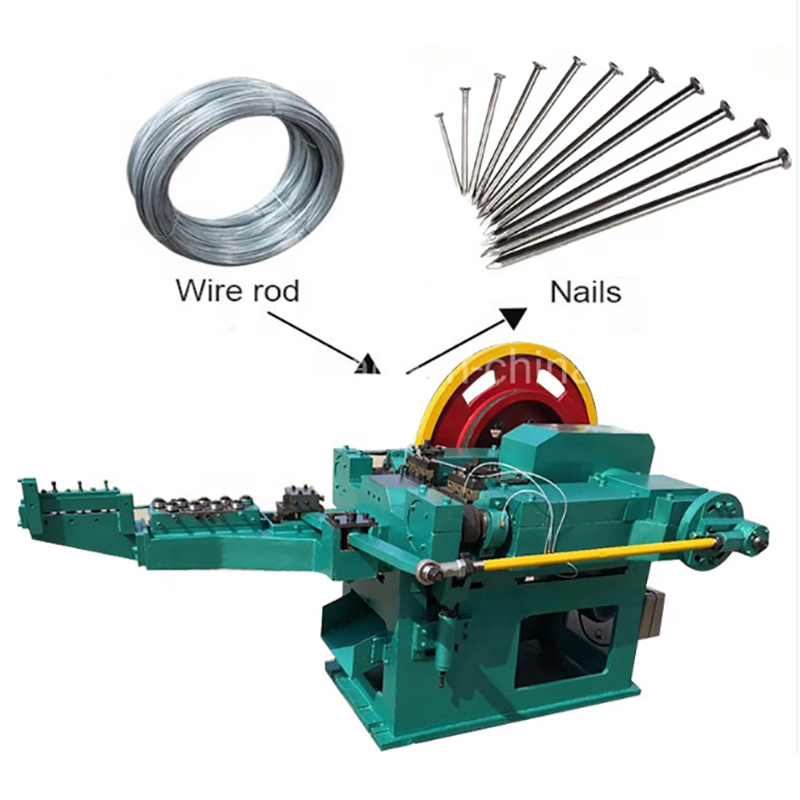

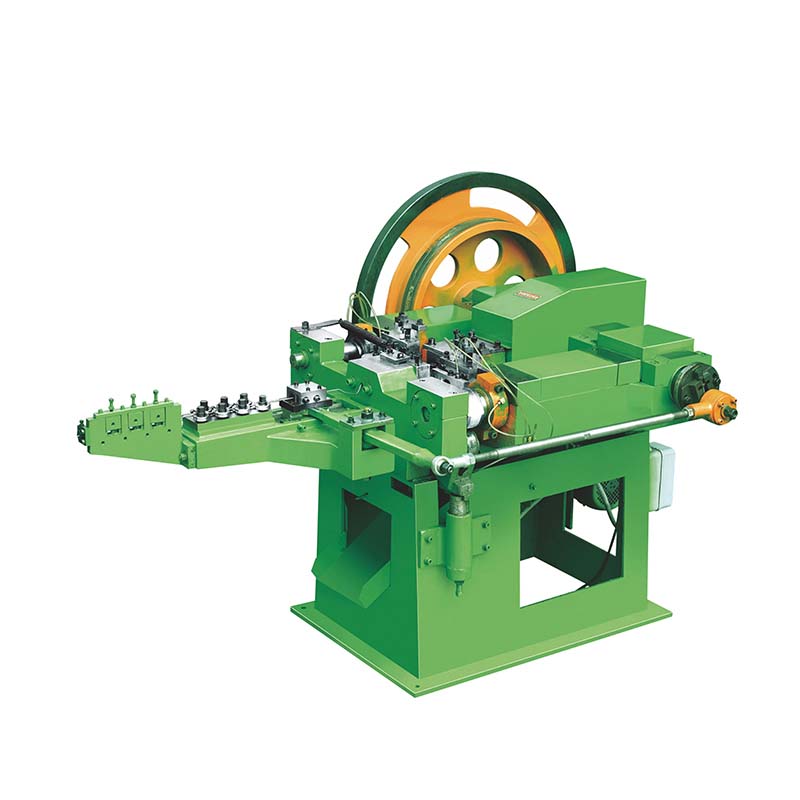

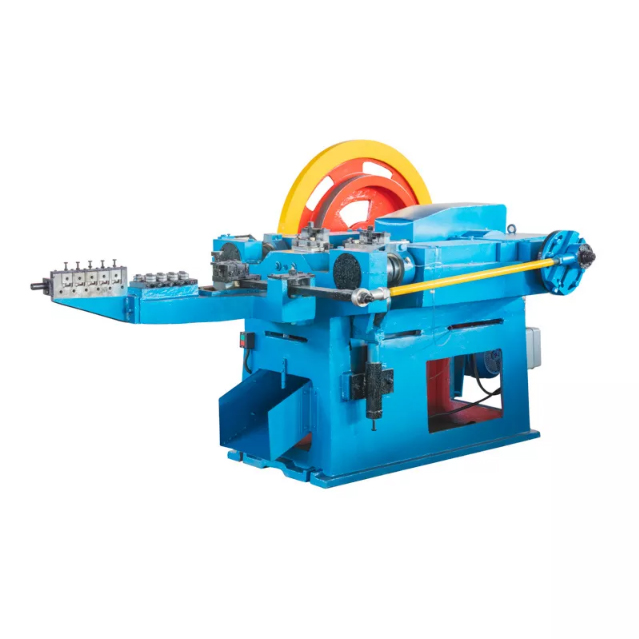

The machine has only one piece punch bar, one pair nail die, and one pair nail cutter, the machine nail die will grip the steel wire and the punch bar will punch to get the nail head, and the nail cutter to cut the nail point. this structure decides that it can make only one nail per time.

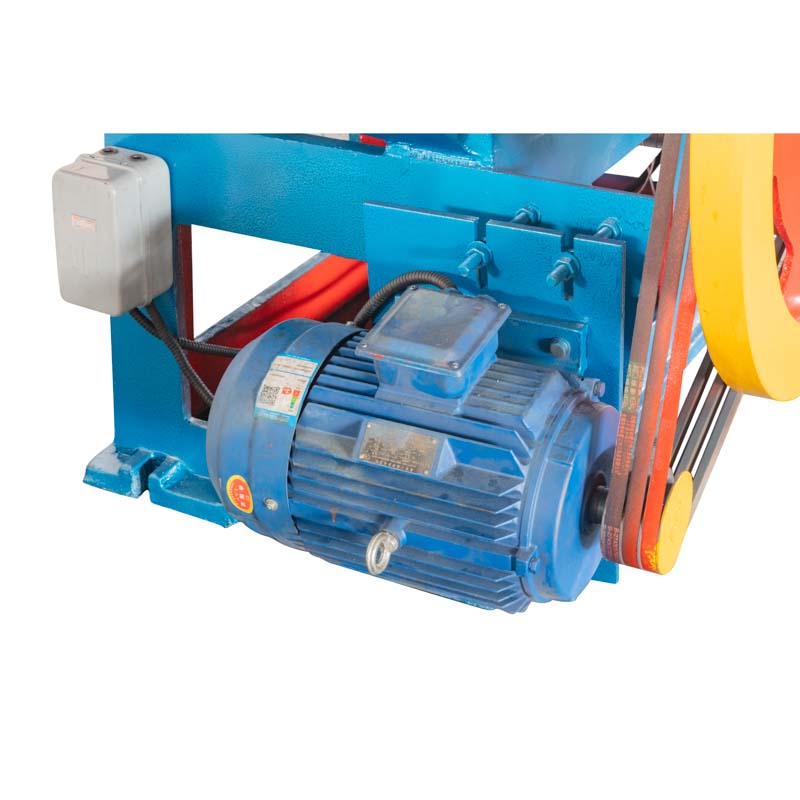

This type nail-making machine adopts a plunger structure, driven by 3 phase electric motor and is equipped with auto oil pipe lubrication.

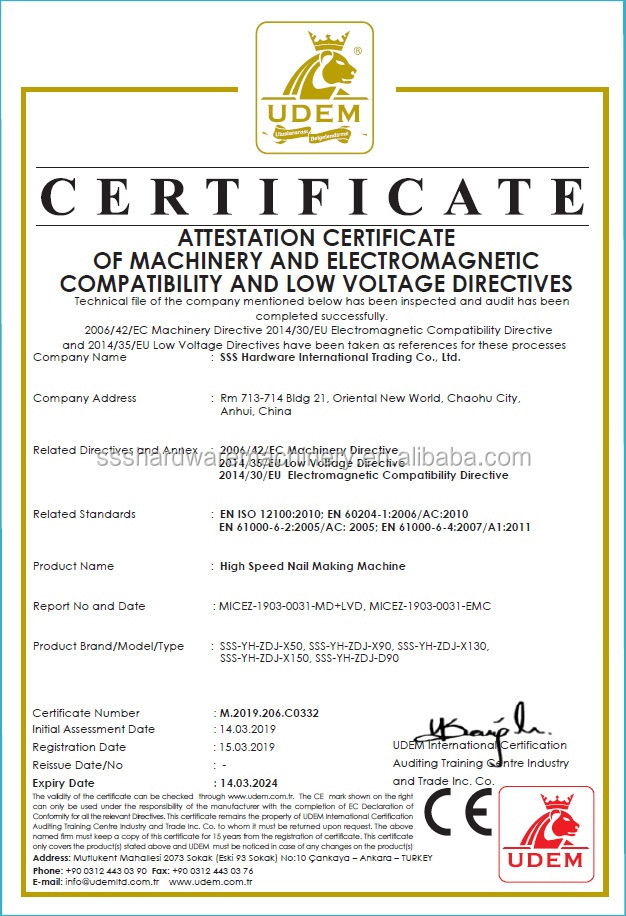

Certifications
Packaging and shipping
1. Shipping port: Shanghai
2. Validity: within 30 days
3. Payment terms: 30% T/T down payment in advance and 70% before shipment
4. Warranty: 1 year from date of installation
5. Installation/Operation/Service/Maintenance Manual: Provided In English
6. In wooden pallet, In plastic film, the spare parts and cabinet packed by wooden box.
Our service
1. All required documents (including Installation/Operation/Service/Maintenance Manual) will be provided in English.
2. Engineer will give free training and guide to labors at customer's site if requested.
3. Commissioning charge is $150/day/engineer,and customer will be asked to provide room, meals, round-trip transportation for engineer.
4. We will offer life-long technical guide and maintenance.
5. Warranty:1year from date of installation.

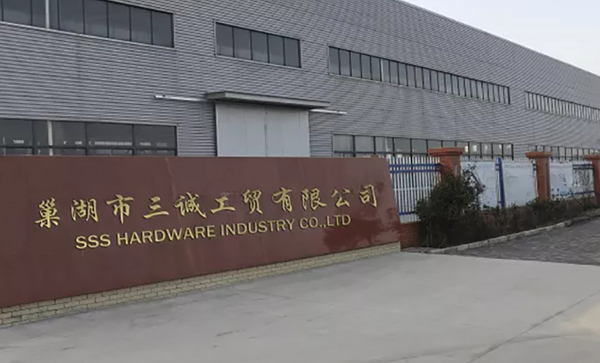

Our company
