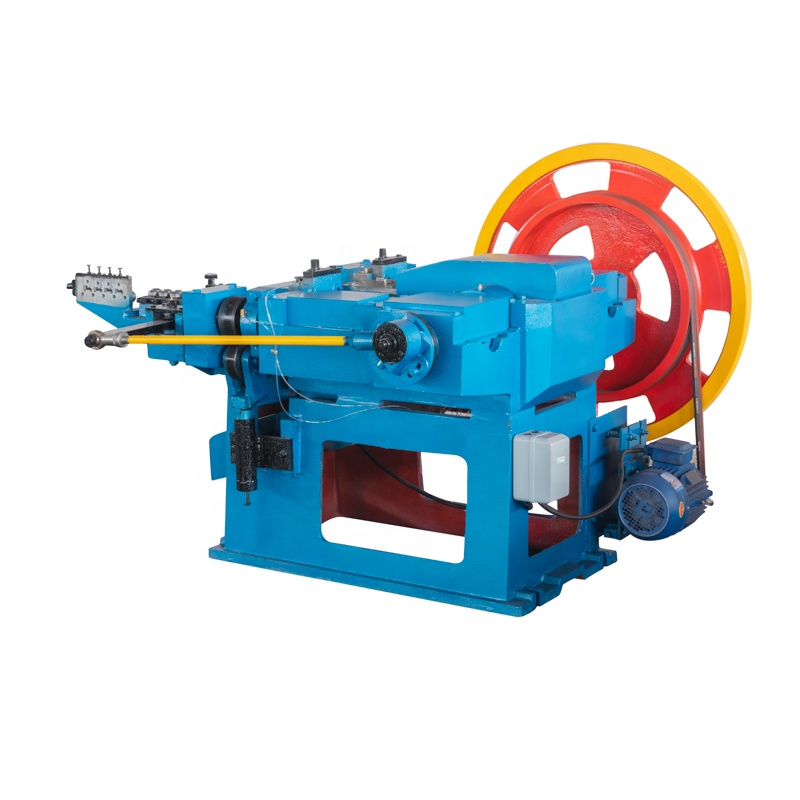

Our Z series machines are long life service, low noise with super performance. Automatic nail making machine is mainly used for manufacturing steel nails. The machine is also able to manufacture other steel nails with special specifications, such as double-cap nail, felt nail, V-nail, corrugated plate nail, U-nail, injecting-nail, gun nail and etc,after little reformation. The manufactured nails can be extensively used in industry, building, repairing and etc.
| Model | Z94-5.5C | Z94-4C | Z94-3C | Z94-2C | Z94-1C |
| Max. dia. of nail(MM) | 5.5 | 4.5 | 3.5 | 2.8 | 1.6 |
| Min. dia. of nail(MM) | 3.8 |
2.8
|
1.8 | 1.2 | 0.9 |
| Max. Length of nail(MM) | 150 | 100 | 75 | 50 | 25 |
| Min. length of nail(MM) | 80 | 50 | 30 | 16 | 9 |
| Motor power(KW) | 5.5 | 4 | 3 | 2.2 | 1.5 |
| Nail making speed | 220pcs/min | 260pcs/min | 320pcs/min | 380pcs/min | 450pcs/min |
| L*W*H(M) | 2.5*1.6*1.5 | 2.2*1.6*1.65* | 2.0*1.4*1.4 | 1.7*1.3*1.4 | 1.5*1.3*1.2 |
| Weight(TONS) | 2.3 | 2 | 1.8 | 1.45 | 1.2 |

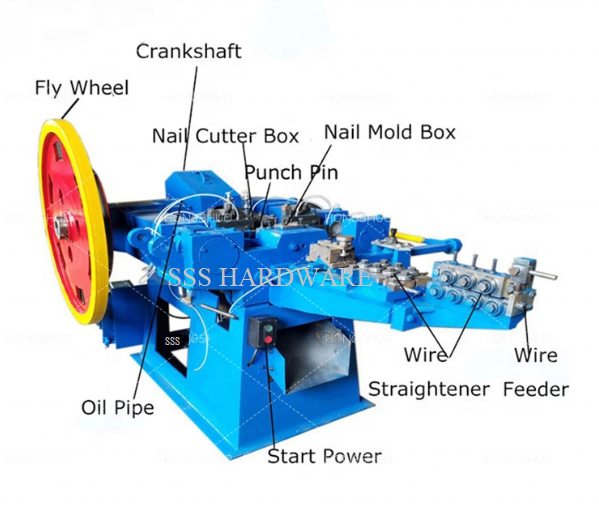

Detail Images
The machine has only one piece punch bar, one pair nail die, and one pair nail cutter, the machine nail die will grip the steel wire and the punch bar will punch to get the nail head, and the nail cutter to cut the nail point. this structure decides that it can make only one nail per time.
This type nail-making machine adopts a plunger structure, driven by 3 phase electric motor and is equipped with auto oil pipe lubrication.
Certifications
Packaging and shipping
1. Shipping port: Shanghai
2. Validity: within 30 days
3. Payment terms: 30% T/T down payment in advance and 70% before shipment
4. Warranty: 1 year from date of installation
5. Installation/Operation/Service/Maintenance Manual: Provided In English
6. In wooden pallet, In plastic film, the spare parts and cabinet packed by wooden box.
Our service
1. All required documents (including Installation/Operation/Service/Maintenance Manual) will be provided in English.
2. Engineer will give free training and guide to labors at customer's site if requested.
3. Commissioning charge is $150/day/engineer,and customer will be asked to provide room, meals, round-trip transportation for engineer.
4. We will offer life-long technical guide and maintenance.
5. Warranty:1year from date of installation.
