SSS Fully Automatic Nail Thread Rolling Machine

thread rolling machine
thread rolling machine rollers
automatic thread rolling machines
thread rolling machine for nails
automatic high speed thread rolling machine

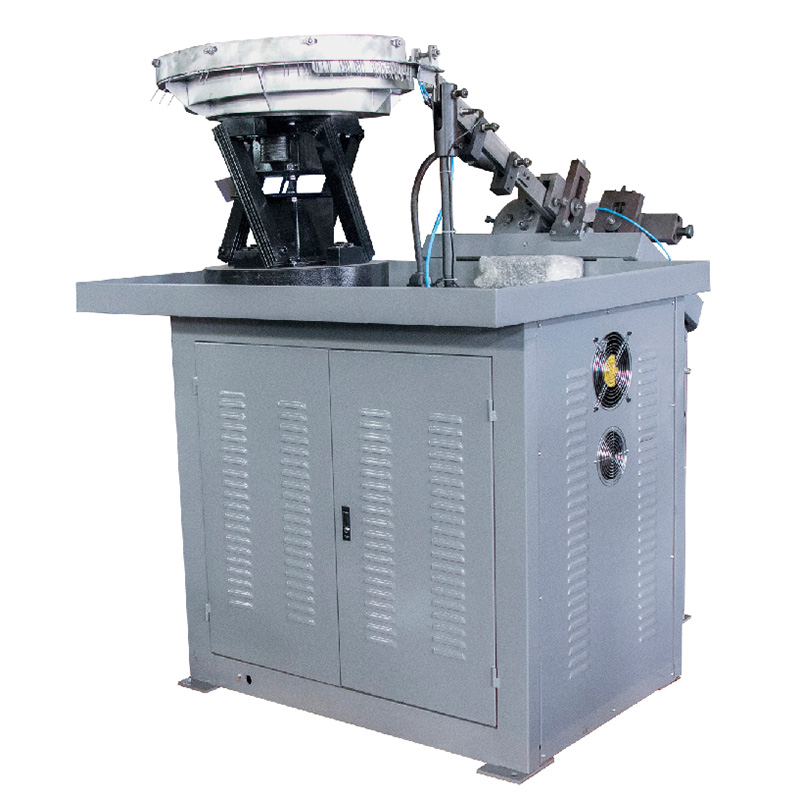

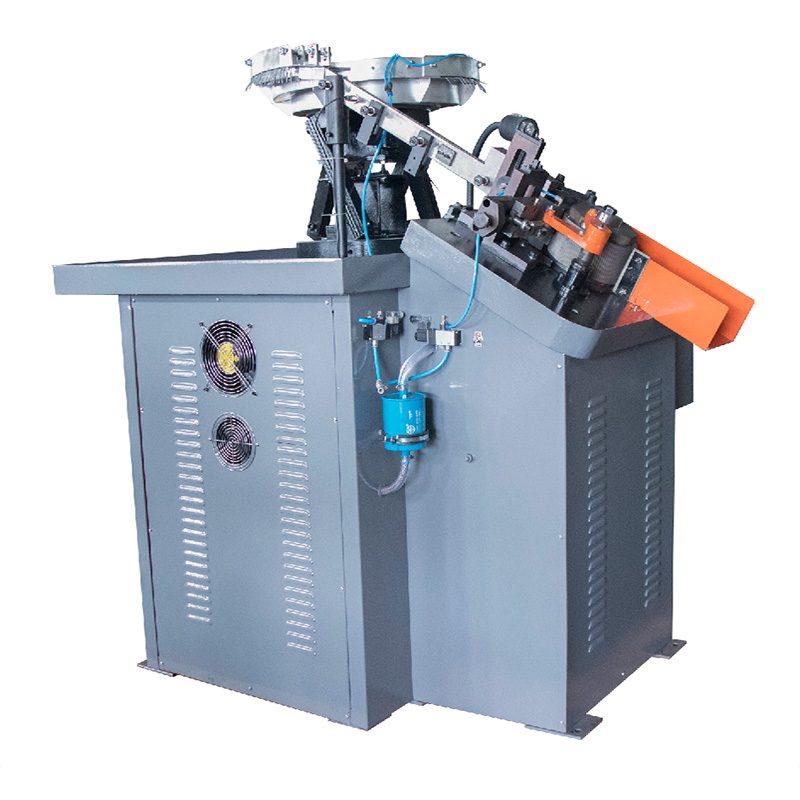

SSS Fully Automatic Nail Thread Rolling Machine

    Our high speed thread rolling machine is designed with numerous special molds that are capable of producing a wide range of special-shaped nails, including but not limited to anti-loose screw shank nails, ring shank nails, and various newly designed nails. The machine is equipped with two thread rolling dies that have staggered teeth and are arranged in a relative 1/2 pitch. The static die remains fixed while the moving die reciprocates linearly in parallel to the static die. As the nail is passed through the two dies, it undergoes deformation by pressing and rubbing to create threaded surface.

Inquiry now
Overview
Product description
    Our high-speed thread rolling machine is a highly efficient tool used for processing threads. It comes with a variety of specially designed molds and can produce a wide range of nails, including anti-loose screw shank nails, ring shank nails, and other new styles. The machine uses unit feeding, section plate slide, timing feeder, as well as dynamic, static, and touch combination techniques. Compared to traditional thread rolling machines, this machine has distinctive features such as:
    high production efficiency ( around 5-10 times faster than the traditional one)
    simple structure
    convenient and reliable operation
    suitable for various diameter,length and screw, ring shank producing






item
value
Place of Origin
China
Brand Name
SSS
Condition
New
Machine Type
Threading Machine
Weight (KG)
1500
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
New Product 2022
Warranty of core components
1 Year
Core Components
Bearing, Motor, Gear
Warranty
1 Year
Key Selling Points
Automatic
Applicable Industries
Machinery Repair Shops, Farms, Construction works
Showroom Location
None
Voltage
380V
Dimension(L*W*H)
1400*1400*1700mm
Speed
1000-1500PCS/Minute
Power
5.5kw
Certification
CE, CE Certification
Thread type
Screw or ring
Application
Nail Makings
Advantage
Easy Operation High Efficiency





Wearing parts

Thread style

(1)screw shank

(2)ring shank



Packaging and shipping

  1. Shipping port: Shanghai
  2. Validity: within 30 days
  3. Payment terms: 30% T/T down payment in advance and 70% before shipment
  4. Warranty: 1 year from date of installation
  5. Installation/Operation/Service/Maintenance Manual: Provided In English
  6. In wooden pallet, In plastic film, the spare parts and cabinet packed by wooden box.

Our service

  1. All required documents (including Installation/Operation/Service/Maintenance Manual) will be provided in English.
  2. Engineer will give free training and guide to labors at customer's site if requested.
  3. Commissioning charge is $150/day/engineer,and customer will be asked to provide room, meals, round-trip transportation for engineer.
  4. We will offer life-long technical guide and maintenance.
  5. Warranty:1year from date of installation.
